Huawei AR G3 AR160 Series AR169 intelligence enterprise router combines wireless, wireless controller and security firewall functionality all in one device. Huawei AR G3 Series AR169 enterprise router builds with 1 VDSL WAN port, 4 Gigabit Ethernet 10/100/1000 LAN ports and 1 USB. Huawei AR160 series router is mature, stable and quiet router embedded hardware encryption for security to ensure high performance for small network.
Quick Specs

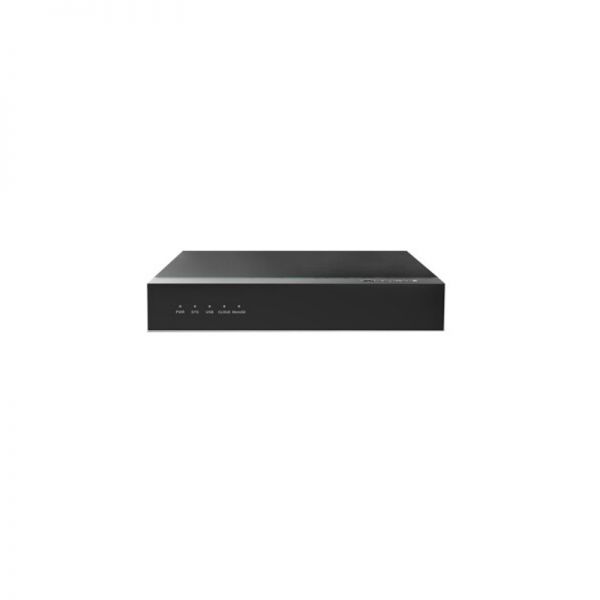

Figure 1 shows the appearance of Huawei Router - AR169.
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router - AR169 |
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 VDSL interface LAN interfaces: 4 10/100/1000M auto-sensing Ethernet electrical interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: GE0-GE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
Product Details
Figure 2 shows the back panel of Huawei Router - AR169.
Note:
|
① |
CON/AUX interface |
|
② |
WAN interface: VDSL interface |
|
③ |
LAN interfaces: four GE electrical interfaces |
|
④ |
RST button |
|
⑤ |
Power interface |
|
⑥ |
Jack for power cable locking strap |
Compare to Similar Items
Table 2 shows the comparison between AR169 and AR2220E.
|
Model |
AR169 |
|
|
SIC Slots |
0 |
4 |
|
Memory |
512 MB |
1 GB |
|
Flash |
512 MB |
512 MB |
|
Weight |
2.8 kg (6.17 lb) |
6 kg (13.2 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
442.0 mm x 420.0 mm x 44.5 mm |
AR169 Specification
AR169 Specification |
|
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 VDSL interface LAN interfaces: 4 10/100/1000M auto-sensing Ethernet electrical interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: GE0-GE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
