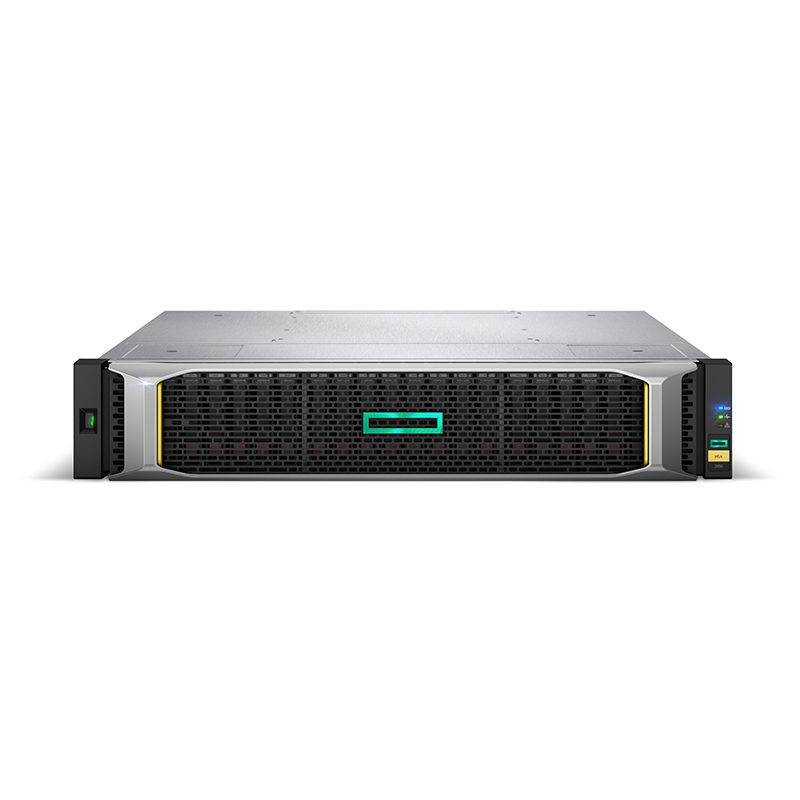

HPE MSA 1050 12Gb SAS DC LFF Storage.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
Q2R20A |
|
Description |
MSA 1050 12GB SAS DC LFF Storage |
|
Product Series |
1000 |
|
Product Model |
1050 |
|
Product Type |
DAS Storage System |
|
Host Interface |
12Gb/s SAS |
|
Number of SAS Ports (External) |
6 |
|
Total Number of USB Ports |
2 |
|
Number of Controllers |
2 |
|
Controller Type |
12Gb/s SAS |
|
RAID Supported |
Yes |
|
RAID Levels |
1, 5, 6, 10 |
|
Number of Total Expansion Bays |
12 |
|
Number of 3.5" Bays |
12 |
|
Number of Hard Drives Supported |
12 |
|
Number of Hard Drives Installed |
No |
|
Total Hard Drive Capacity Supported |
120 TB |
|
Height |
3.5" |
|
Width |
22.5" |
|
Depth |
17.6" |
|
Form Factor |
Rack-mountable |
|
Rack Height |
2U |
Get more information
Do you have any question about the Q2R20A?
Contact us now via Live Chat or [email protected].
Q2R20A Specification
Q2R20A Specification | |
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SAS-2 |
| Storage | |
| Total Array Capacity | 0 TB |
| Max Supported Capacity | 120 TB |
| HDD Array External Interface | SAS 12Gb/s |
| Maximum LUNs | 512 |
| Storage Controller | |
| Type | 2 x RAID |
| Interface Type | SAS 12Gb/s |
| Data Transfer Rate | 1.2 GBps |
| Cache / Buffer Size (Max) | 6 GB |
| Max Storage Devices Qty | 48 |
| RAID Level | RAID 1, RAID 5, RAID 6, RAID 10 |
| Hard Drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) - 3.5 LFF |
| Interfaces | 4 x SAS 12Gb/s ¦ 2 x management - mini-USB Type A ¦ 2 x management - RJ-45 ¦ 2 x SAS 6Gb/s - 26 pin 4x Mini SAS (SFF-8088) |
| System Requirements | |
| OS Required | Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2012, VMware ESX, Microsoft Windows Server 2016 |
| Miscellaneous | |
| Compliant Standards | VCCI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, CCC, IEC 60950-1, EN 60950-1, FCC Part 15.109, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, KN24, KN22 Class A, China RoHS, AS/NZS CISPR 22, EN 55022 Class A, EN 55024 Class A, CNS 13438 Class A, UL 6950-1, ICES-003:2004 Class A |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 22.5 in |
| Height | 3.5 in |
| Weight | 38.69 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
