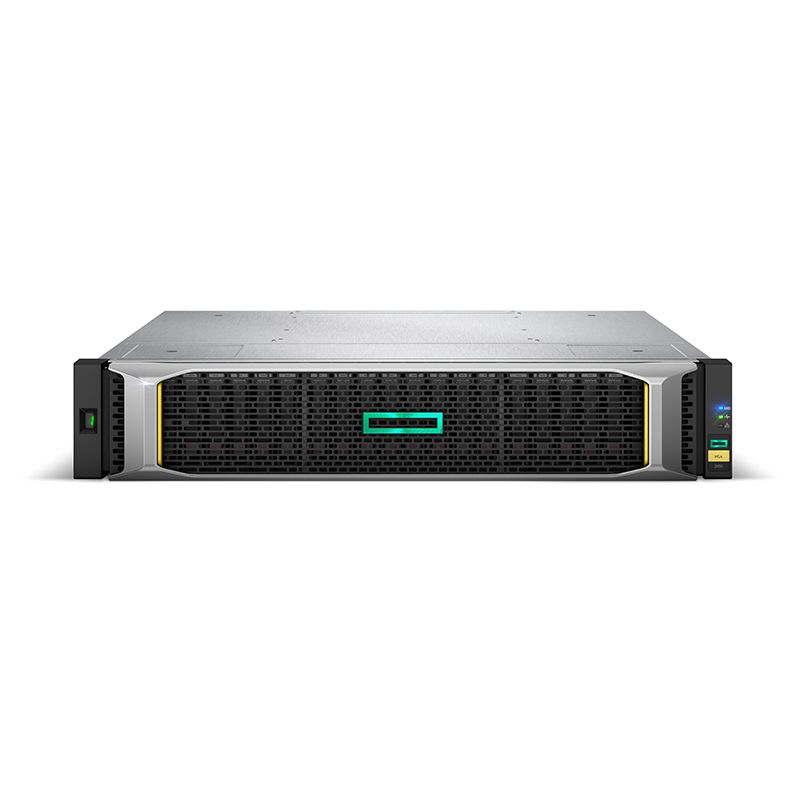

HPE MSA 2052 SAN Dual Controller LFF Storage. The HPE MSA 2052 SAN Storage is a hybrid flash system designed for affordable application acceleration for small and remote office deployments. Don’t let the low cost fool you it gives you the combination of simplicity, flexibility and advanced features you many not expect in an entry-priced array. Start with 1.6 TB of flash capacity included and scale as needed with any combination of solid state disks (SSD), high-performance enterprise, or lower-cost midline SAS-based drives. The HPE MSA 2052 SAN Storage has been the industry-leading entry storage Fibre Channel (FC) platform for the past eight years, with nearly 500,000 systems sold worldwide [1]. Delivering performance in excess of 200,000 IOPS, it can save you up to 40%[2] with an all-inclusive software suite and 1.6 TB of flash capacity included. It’s seriously simple and affordable flash storage to help you get high performance for a low cost.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
Q1J02A |
|
Description |
HPE MSA 2052 SAN Dual Controller LFF Storage |
|
Product Model |
2052 |
|
Product Type |
SAN Storage System |
|
Number of Controllers |
2 |
|
Controller Type |
Serial Attached SCSI (SAS) |
|
Number of Total Expansion Bays |
12 |
|
Number of 3.5" Bays |
12 |
|
Number of Hard Drives Supported |
12 |
|
Number of Solid State Drive Supported |
12 |
|
Form Factor |
Rack-mountable |
|
Rack Height |
2U |
Get more information
Do you have any question about the Q1J02A?
Contact us now via Live Chat or [email protected].
Q1J02A Specification
Q1J02A Specification |
|
|
Chassis |
|
|
Installed Devices Modules Qty |
2 |
|
Supported Devices Modules Qty |
12 |
|
Supported Interface |
Serial Attached SCSI 2 |
|
Dimensions & Weight |
|
|
Width |
29 in |
|
Depth |
26 in |
|
Height |
11 in |
|
Weight |
127.65 lbs |
|
Environmental Standards |
|
|
ENERGY STAR Certified |
Yes |
|
Expansion Bays |
|
|
Form Factor (metric) |
8.9 cm LFF |
|
Hard Drive |
|
|
Installed Qty |
2 |
|
Type |
SSD |
|
Optical Storage |
|
|
Type |
None |
|
Storage Capacity Details |
|
|
Type |
Raw |
|
Capacity |
960 TB |
|
Bay Provided |
|
|
Form Factor |
3.5 LFF |
|
Total Qty |
12 |
|
Free Qty |
10 |
|
Environmental Parameters |
|
|
Sound Emission |
55 dBA |
|
Min Operating Temperature |
41 °F |
|
Max Operating Temperature |
104 °F |
|
Humidity Range Operating |
10 - 90% (non-condensing) |
|
Header |
|
|
Compatibility |
PC, Unix |
|
Manufacturer |
Hewlett-Packard |
|
Packaged Quantity |
1 |
|
Product Line |
HPE Modular Smart Array |
|
Model |
2052 SAN Dual Controller LFF Storage |
|
Brand |
HPE |
|
Interface Provided |
|
|
Qty |
4 |
|
Interface (Storage) |
SAS |
|
Purpose Location |
Management |
|
Connector Type |
RJ-45 |
|
Miscellaneous |
|
|
Compliant Standards |
CAN/CSA C22.2 No. 60950-1-03, CCC, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 60950-1, EN55022, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15, GS, ICES-003:2004 Class A, IEC 60950-1, KN22 Class A, KN24, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE |
|
Features |
Systems Insight Manager (SIM) |
|
Height (Rack Units) |
2 |
|
Color Category |
Black, Gray |
|
Power Device |
|
|
Installed Qty |
2 |
|
Max Supported Qty |
2 |
|
Power Consumption Operational |
432 Watt |
|
Nominal Voltage |
AC 120/230 V |
|
Power Redundancy |
Yes |
|
Hot-Plug |
Hot-plug |
|
Type |
Internal power supply |
|
Processor |
|
|
Type |
None |
|
Service |
|
|
Support Details Type |
Limited warranty |
|
Support Details Full Contract Period |
3 years |
|
Service & Support |
|
|
Type |
3 years warranty |
|
Software |
|
|
Type |
HPE 3PAR Virtual Copy, HPE Advanced Data Services Suite, HPE MSA Remote Snap Software |
|
Storage |
|
|
Type |
Solid state / hard drive array |
|
Max Supported Capacity |
960 TB |
|
Total Array Capacity |
1.6 TB |
|
Rack-mountable |
Rack-mountable |
|
Maximum LUNs |
512 |
|
Storage Controller |
|
|
Type |
RAID |
|
Bus Type |
iSCSI |
|
RAID Level |
RAID 1, RAID 10, RAID 5, RAID 6 |
|
Data Transfer Rate |
600 MBps |
|
Interface Type |
Serial Attached SCSI 2 |
|
Buffer Size |
8 GB |
|
Installed Qty |
2 |
|
Storage Controller (2nd) |
|
|
Type |
None |
|
Storage Hard Drive |
|
|
Capacity |
800 GB |
|
Features |
Mixed-Use |
|
System Requirements |
|
|
Min Operating System |
Apple MacOS X, HP OpenVMS, HP-UX, Microsoft Windows, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2012 R2 with Hyper-V, Red Hat Enterprise Linux, SuSe Linux, VMware ESXi 5.x, VMware ESXi 6.x |
