| General |

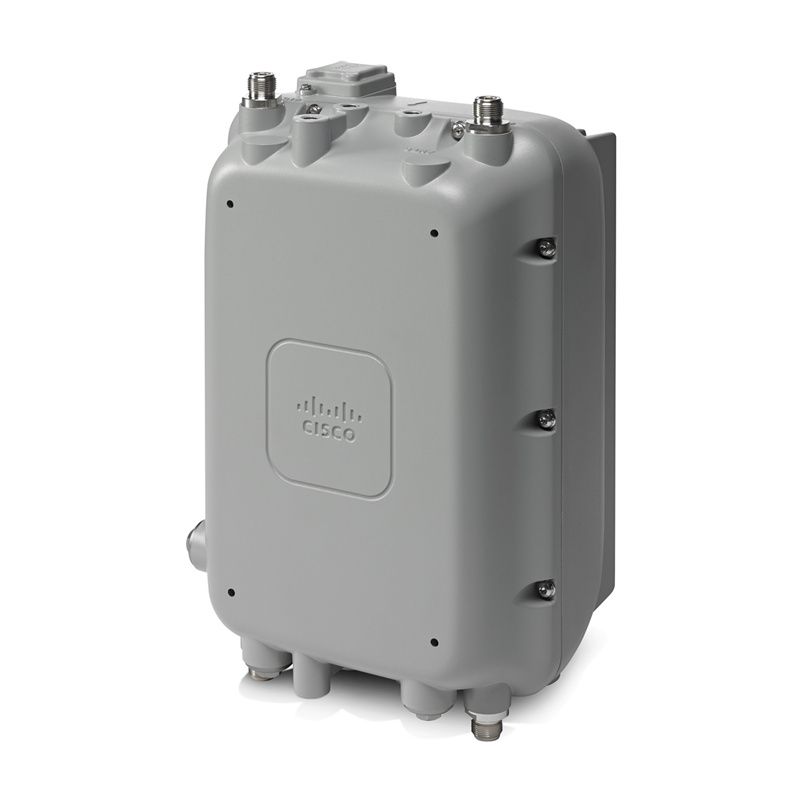

| Device Type | Wireless access point |
| Ruggedized Design | Outdoor |
| Width | 12 in |
| Depth | 7.8 in |
| Height | 6.4 in |
| Weight | 14.11 lbs |
| Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | CCK |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Network / Transport Protocol | L2TP, IPSec |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, MIMO technology, Quality of Service (QoS), wireless bridge mode, CleanAir technology, ClientLink technology |
| Encryption Algorithm | LEAP, AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Authentication Method | X.509 certificates, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n |
| Antenna |
| Antenna | Internal |
| Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x |
| Interfaces | 1 x 1000Base-T - RJ-45 |
| Miscellaneous |
| Compliant Standards | ICES-003, EN 300.328, EN 301.489.1, EN 301.489.17, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, NEMA Type 4X, FCC Part 15.107, FCC Part 15.109, AS/NZS 4268, EN 301.893, FCC Part 15.407, IP67 |
| Power |
| Power Over Ethernet (PoE) Supported | PoE |
| Manufacturer Warranty |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 131 °F |
