AIR-CAP1702I-H-K9 Specification

Product Description

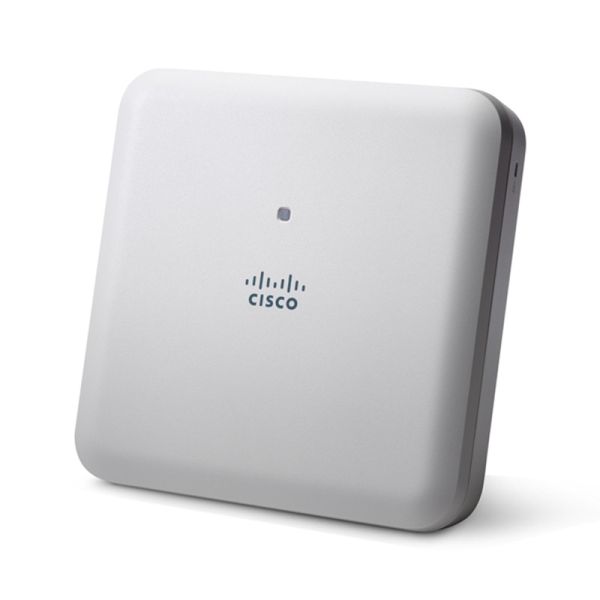

Cisco Aironet 1700 Series Access Points with Internal antennas

Devide Type

Wireless  Access point

Regulatory domain

H regulatory domain

Supported wireless LAN controllers

• ● Cisco 2500 Series Wireless Controllers
  ● Cisco Wireless Controller Module for ISR G2
  ● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches
  ● Cisco 5500 Series Wireless Controllers
  ● Cisco Flex 7500 Series Wireless Controllers
  ● Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
  ● Cisco 5760 Wireless LAN Controller
  ● Cisco Catalyst 3850 Series Switches
  ● Cisco Catalyst 3650 Series Switches

Software

Cisco Unified Wireless Network Software Release 7.6MR2 or later

Data rates supported

• 802.11a: up to 54 Mbps
  ● 802.11g: up to 54 Mbps

Maximum number of nonoverlapping channels

5 GHz
●  802.11a:
◦   20 MHz: 21
●  802.11n:
◦   20 MHz: 21
◦   40 MHz: 9
●  802.11ac:
◦   20 MHz: 21
◦   40 MHz: 9
◦   80 MHz: 4

• ● 802.11n on 2.4 GHz: up to 144.4 Mbps
  ● 802.11ac on 5 GHz: up to 867Gbps

2.4 GHz
●  802.11b/g:
◦   20 MHz: 3
●  802.11n:
◦   20 MHz: 3

Antenna (purchase separately)

• Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
• Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Interfaces

• 10/100/1000BASE-T autosensing (RJ-45)
• Management console port (RJ-45)

System memory

• 512 MB DRAM
• 64 MB flash

Power consumption

15 Watts

IEEE standards

• IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

Security

• ● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
  ● 802.1X
• ● IEEE 802.11ac Draft 5
• ● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

Extensible Authentication Protocol (EAP) types

• ● EAP-Transport Layer Security (TLS)
  ● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
  ● Protected EAP (PEAP) v0 or EAP-MSCHAPv2
• ● EAP-Flexible Authentication via Secure Tunneling (FAST)
  ● PEAP v1 or EAP-Generic Token Card (GTC)
  ● EAP-Subscriber Identity Module (SIM)

Frequency band and 20-MHz operating channels


H (H regulatory domain):
●  2.412 to 2.472 GHz; 13 channels
●  5.150 to 5.350 GHz; 8 channels
●  5.745 to 5.825 GHz; 5 channels

Environmental

• ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
  ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
  ● Operating temperature: -4° to 122°F (-20° to 50°C)
• ● Operating humidity: 10% to 90% percent (noncondensing)
  ●  Operating altitude test: 40˚C, 9843 ft.
