Huawei USG2110-A-W USG2110 Unified Security Gateways includes 1FE WAN (RJ45) port, 8FE LAN (RJ45) ports, 1ADSL, WIFI, 512M memory and 1AC power supply. It provides 180 Mbit/s of firewall throughput, 40 Mbit/s of VPN throughput, and the multi-thread processing technology to ensure fast data and security service processing and improve user experience. The Huawei USG2110 series unified security gateway developed to meet the network security needs of various organizations including the small enterprises, branch offices, operating nodes and SOHOs. Based on industry-leading software and hardware architectures, Huawei USG2110 series Unified Security Gateways offer user-based security policies which integrate the professional security technologies including IPS, anti-virus (AV), URL filtering, application control and anti-spam (AS). Moreover, they also support IPv6 protection and related transition technology and provide powerful, scalable, and sustainable security capabilities for customers.
Quick Specs

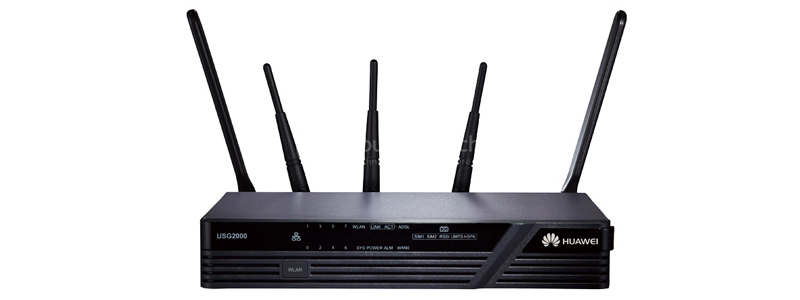

Figure 1 shows the appearance of USG2110-A-W.
Table 1 shows the Quick Specs.
|
Specifications |
USG2110-A-W |
|
Part Number |
0235G6AC |
|
Description |
USG2110-A-W AC Host with 1FE WAN(RJ45),8FE LAN(RJ45),1ADSL,WIFI,512M memory,1AC power supply |
|
Fixed Ports |
1 x FE WAN |
|
IPv4 |
802.1Q, static routing, WCMP, policy-based routing, RIP, OSPFv1/v2, BGP4, IS-IS, DHCP, and link aggregation |
|
IPv6 |
Static routing, policy-based routing, RIPng, OSPFv3, BGP4+, and IS-ISv6 |
|
VPN |
IPSec, SSL, MPLS, L2TP, and GRE VPN |
|
User Authentication |
Local Web, LDAP, AD, and RADIUS |
|
Basic Security Defense |
Application/user-based access control, NAT, application/user-based bandwidth control, anti-DDoS, firewall/VPN high availability, and load balancing |
|
UTM |
IPS, AV, AS, URL filtering, and application control |
|
Typic Power(W) |
12.8 |
|
Dimensions (H x W x D) |
280mm×190mm×35mm |
|
Weight (full configuration) |
<2.0 kg |
Product Details
Figure 2 shows the front panel of USG2110-A-W.
Note:
|
① |
WLAN switch |
|
② |
Indicator |
Figure 3 shows the back panel of USG2110-A-W.
Note:
|
① |
ADSL interface |
|
② |
WiFi antenna connectors |
|
③ |
USB anti-theft locating hole |
|
④ |
USB anti-theft installation hole |
|
⑤ |
Security lock hole |
|
⑥ |
Power socket |
|
⑦ |
Reset button |
|
⑧ |
USB2.0 interface |
|
⑨ |
Console port |
|
⑩ |
WAN0 interface |
|
⑪ |
LAN interface (LAN0 to LAN7) |
Compare to Similar Items
Table 2 shows the comparison of USG2110-A-GW-W， USG2110-A-W， USG2110-F， USG2110-F-W.
|
Specifications |
USG2110-A-W |
|||
|
Part Number |
0235G6AD |
0235G6AC |
0235G6AA |
0235G6AB |
|
Description |
USG2110-A-GW-W AC Host with 1FE WAN(RJ45)+8FE LAN(RJ45),1ADSL,WIFI,3G-WCDMA,512M memory,1AC power supply |
USG2110-A-W AC Host with 1FE WAN(RJ45),8FE LAN(RJ45),1ADSL,WIFI,512M memory,1AC power supply |
USG2110-F AC Host with 2FE WAN(RJ45)+8FE LAN(RJ45),512M memory,1AC power supply |
USG2110-F-W AC Host with 2FE WAN(RJ45)+8FE LAN(RJ45),WIFI,512M memory,1AC power supply |
|
Fixed Ports |
1 x FE WAN |
1 x FE WAN |
2 x FE WAN |
2 x FE WAN |
|
Typic Power(W) |
13.5 |
12.8 |
10.4 |
12.8 |
Get more information
Do you have any question about the USG2110-A-W?
Contact us now via Live Chat or [email protected].
USG2110-A-W Specification
USG2110-A-W Specifications |
|
|
Fixed WAN Ports |
1*10/100 WAN+1ADSL |
|
Fixed LAN Ports |
8*10/100 LAN |
|
Maximum Ethernet density |
9FE |
|
Expansion slots |
/ |
|
Throughput（bps） |
180M |
|
New connections |
2000 |
|
Con-current connections |
100,000 |
|
ACL |
3000 |
|
Number of Virtual Firewalls |
10 |
|
USB |
1 (v2.0) |
|
Wi-Fi |
Y |
|
3G |
Y |
|
IPS |
Y |
|
AV |
Y |
|
URL Filtering |
Y |
|
AS |
Y |
|
IPv6 |
Y |
|
Hardware Acceleration |
Y |
|
Expansion Cards |
N |
|
Dimensions (H x W x D) |
280mm×190mm×35mm |
|
Weight (full configuration) |
<2.0 kg |
|
Power Supply |
AC:100~240V No redundancy |
|
MTBF |
12.67 year |
|
Feature |
|
|
IPS |
Defends system vulnerabilities, defends against unauthorized download, spoofing software, and spyware/adware, and provides protocol identification. |
|
AV |
Supports file identification and filtering, efficient virus scanning, and can detects more than 7,000,000 viruses. |
|
AS |
Supports local whitelist, local blacklist, remote real-time blacklist, content filtering, keyword filtering, and mail filtering based on the types, sizes, and numbers of attachments. |
|
URL Filtering |
Identifies more than 85 million URLs (blacklist/whitelist filtering, remote category filtering, user-defined category filtering, search engine keyword filtering, malicious URL filtering, and phishing site filtering). |
|
Application Control |
Identifies and manages over 1200 application protocols covering all mainstream applications, such as QQ, NetEase PoPo, AliTalk, PPStream, PPLive, Thunder, eMule, StongHuaShun, DaZhiHui, MSN, GoogleTalk, Youtube, Facebook, BitTorrent, and Skype. |
|
VPN |
IPSec VPN、SSL VPN、MPLS VPN、GRE VPN、L2TP VPN |
|
Anti-DDoS |
Defends against various DoS and DDoS attacks, such as SYN flood, ICMP flood, and UDP flood attacks. |
|
Routing |
IPv4：Static、RIP、OSPF、BGP、IS-IS |
|
IPv6：RIPng、OSPFv3、BGP4+、IPv6 IS-IS、IPv6RD、ACL6 |
|
|
Deployment and Reliability |
Supports transparent, routing, and composite deployment modes, and active/active and active/standby backup modes. |
