- Adopts embedded Linux operation system and high-performance embedded SOC processor
- Supports network adaptive and video and audio adaptive to realize low latency
- H.264, H.264 SVC and H.265 video compression standard, and G.711U and G.726 audio compression standard
- Wide dynamic range (WDR) and high light compensation (HLC)
- Multiple communication protocols: TCP/IP, SNMP, HIK-SIP, RTSP, ONVIF, and standard SIP
- Video collection and all-day monitoring with 2 MP HD camera
- Supports ISUP for public network transmission
- Two-way audio function with up to 5 m communication distance
- build-in high sensitive microphone
- Audio extension with 3.5 mm standard audio interface
- Protection level: IP65
- Explosion-proof level: IK10
- Braille on the buttons

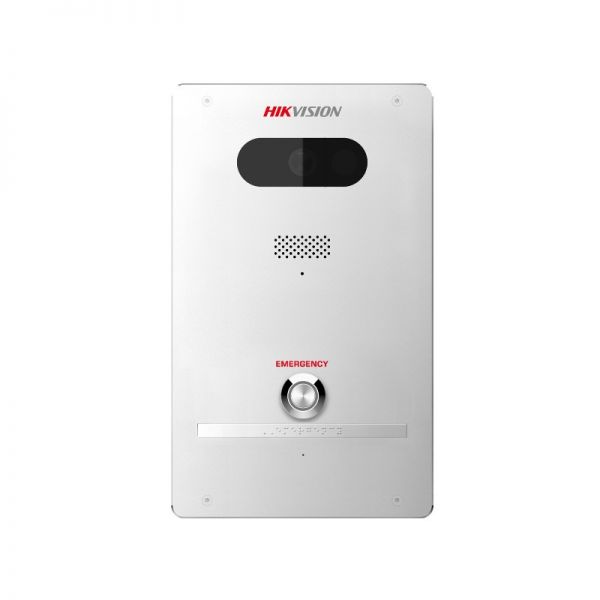

DS-PEAP-CV1 Specification
DS-PEAP-CV1 Specification |
- Features
- Tamper-ProofSupport
- ProtocolTCP/IP, RTSP, SNMP, HIK-SIP, ONVIF
- Interface
- Alarm input2
- Alarm output2
- SD CardStandard Micro SD Card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 256G
- Video
- Video compression standardH.264;H.265
- Resolusion1920*1080
- Frame rate25fps
- Field AngleHorizontal: 109°Vertical: 86°Diagonal: 142°
- Fill LightInfrared Light
- Day/night switch modeAuto switching
- Electrical characteristics
- Power supply12 VDC or RJ45 PoE
- Power Consumption≤40W
- Network
- Wired network10 M/100 M Self-adaptive Ethernet port
- Network encryptionSupports User Lock-in and Password Security Prompt
- General
- Operation temperature-40℃-＋65℃
- Operation humidity10％-90％
- Shell materialMetal
- Dimension(WxHxD)190x119x47mm
- IP RateIP65
- IK RateIK10
- Application scenarioOutdoor
- Installation methodWall-mounted
- Audio
- Audio input1-ch Built-in Omnidirectional MicrophonePickup Distance: 2 mlistening Distance: 10 m
- Audio output1-ch 3 W Build-in Loudspeaker1-ch 3.5 mm Audio Interface for External Audio Output
- Audio encoding/decoding standardG.711;G.726;AAC;OPUS
- Audio qualitySmart Noise Suppression
- Audio compression code rate16Kbps;64Kbps
- Device Connection
- CameraBuilt-in 2MP HD IR CameraIR Distance ≥ 10m
