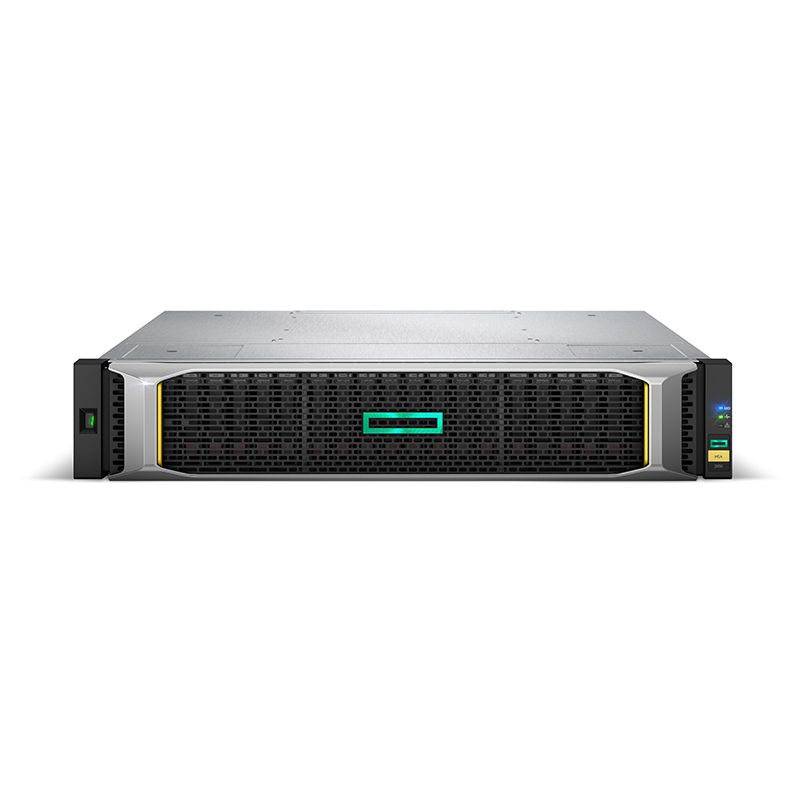

HPE MSA 1050 10GbE iSCSI DC SFF Storage.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
Q2R25A |
|
Description |
MSA 1050 10GBE ISCSI DC SFF Storage |
|
Product Series |
1000 |
|
Product Model |
1050 |
|
Product Type |
SAN Storage System |
|
Number of SAS Ports (External) |
2 |
|
Total Number of USB Ports |
2 |
|
Number of Controllers |
2 |
|
Controller Type |
6Gb/s SAS |
|
RAID Supported |
Yes |
|
RAID Levels |
1, 5, 6, 10 |
|
Number of Total Expansion Bays |
24 |
|
Number of 2.5" Bays |
24 |
|
Ethernet Technology |
10 Gigabit Ethernet |
|
Number of Hard Drives Supported |
24 |
|
Number of Hard Drives Installed |
No |
|
Total Hard Drive Capacity Supported |
76.80 TB |
|
Protocols |
iSCSI |
|
Height |
3.5" |
|
Width |
19.5" |
|
Depth |
17.6" |
|
Form Factor |
Rack-mountable |
|
Rack Height |
2U |
Get more information
Do you have any question about the Q2R25A?
Contact us now via Live Chat or [email protected].
Q2R25A Specification
Q2R25A Specification | |
| Chassis | |
| Installed Devices Modules Qty | 0 |
| Supported Devices Modules Qty | 24 |
| Supported Interface | Serial Attached SCSI 2 |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 19.5 in |
| Height | 3.5 in |
| Weight | 38.69 lbs |
| Expansion Bays | |
| Form Factor (metric) | 6.4 cm SFF |
| Hard Drive | |
| Type | No HDD |
| Optical Storage | |
| Type | None |
| Bay Provided | |
| Form Factor | 2.5 SFF |
| Total Qty | 24 |
| Free Qty | 24 |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Header | |
| Manufacturer | Hewlett-Packard |
| Packaged Quantity | 1 |
| Product Line | HPE Modular Smart Array |
| Model | 1050 Dual Controller SFF Storage |
| Brand | HPE |
| Interface Provided | |
| Qty | 4 |
| Connector Type | RJ-45 |
| Interface (Storage) | SAS 6Gb/s |
| Miscellaneous | |
| Compliant Standards | AS/NZS CISPR 22, CAN/CSA C22.2 No. 60950-1-03, CCC, China RoHS, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, EN 55022 Class A, EN 55024 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, FCC Part 15.109, GS, ICES-003:2004 Class A, IEC 60950-1, KN22 Class A, KN24, RoHS 6/6, UL 6950-1, VCCI, WEEE |
| Height (Rack Units) | 2 |
| Color Category | Black, Silver |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Hot-Plug | Hot-plug |
| Type | Internal power supply |
| Processor | |
| Type | None |
| Service | |
| Support Details Type | Limited warranty |
| Support Details Service Included | Parts |
| Support Details Full Contract Period | 3 years |
| Service & Support | |
| Type | 3 years warranty |
| Storage | |
| Type | Hard drive array |
| Max Supported Capacity | 76.8 TB |
| Total Array Capacity | 0 TB |
| Rack-mountable | Rack-mountable |
| HDD Array External Interface | iSCSI (10 GbE) |
| Maximum LUNs | 512 |
| HDD Array External Interface Class | iSCSI |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID 1, RAID 10, RAID 5, RAID 6 |
| Data Transfer Rate | 10 GBps |
| Interface Type | Serial Attached SCSI 2 |
| Max Storage Devices Qty | 96 |
| Buffer Size | 6 GB |
| Installed Qty | 2 |
| Storage Controller (2nd) | |
| Type | None |
| System Requirements | |
| Min Operating System | Microsoft Windows Server 2012, Microsoft Windows Server 2016, Red Hat Linux, SUSE Linux Enterprise Server, VMware ESX |
